Customized Camera Link Cables For Machine Visions Applications

Donghoo Tech Co., Ltd is an industrial camera cable assemblies factory from China, We offering machine vision cable harness for more than 10 years. We can customize Camera Link data transimission cables,power supply cables and IO cables ect. according to the end users requirements.


The Length:

From as short as 15cm(about 5.9 inch) to as long as 10meters(about 32.8 ft)


The Cable:

Mainly 26wires(11 pairs + 4 drain wire):

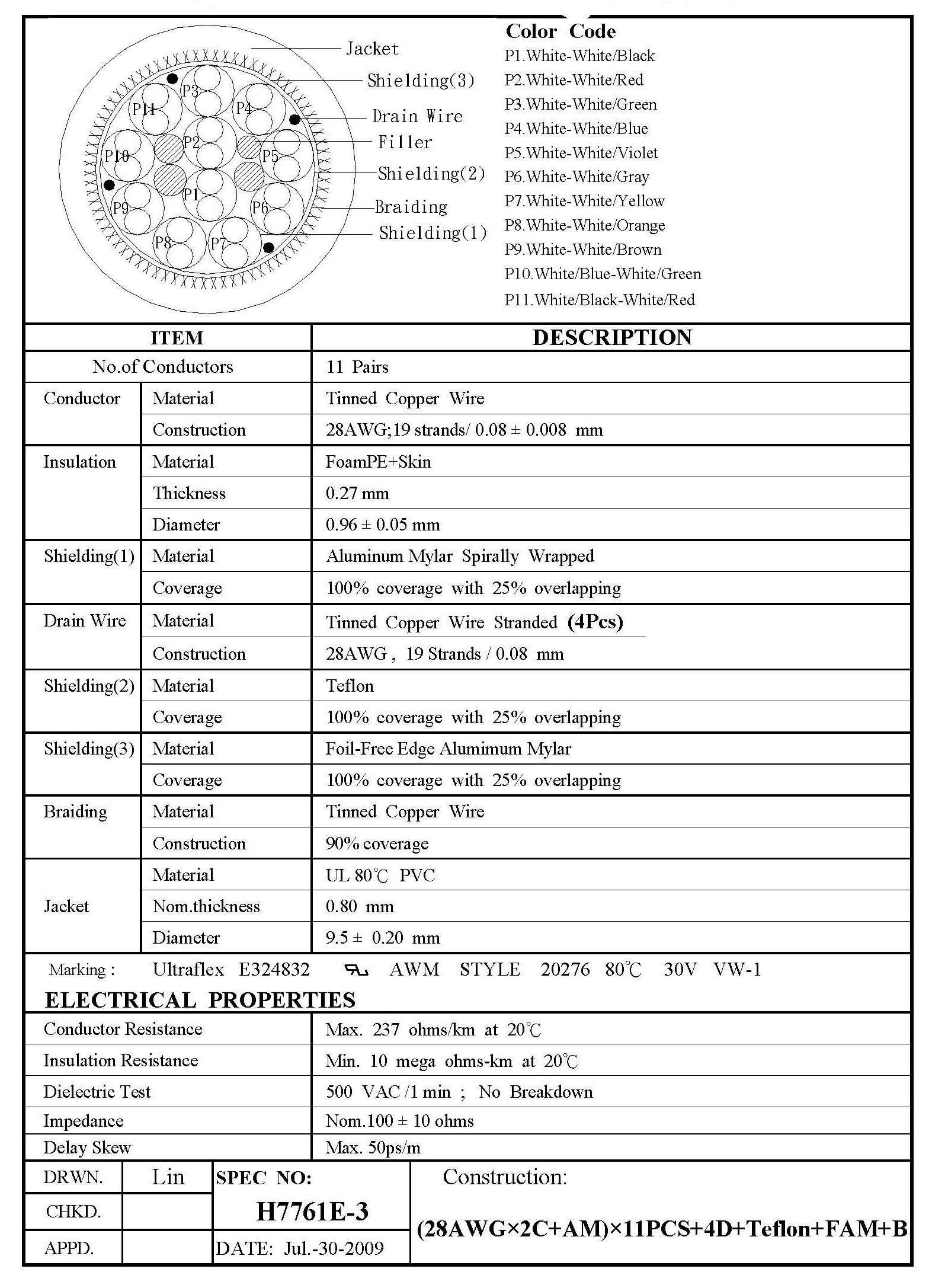

(28AWGx2C+AM)x11PCS+4D+Tefon+FAM+B OD9.5mm High speed chainflex cable used for towline systems(drag chain movement part).

(28AWGx2C+AM)x11PCS+4D+Tefon+FAM+B OD9.5mm High speed chainflex cable used for towline systems

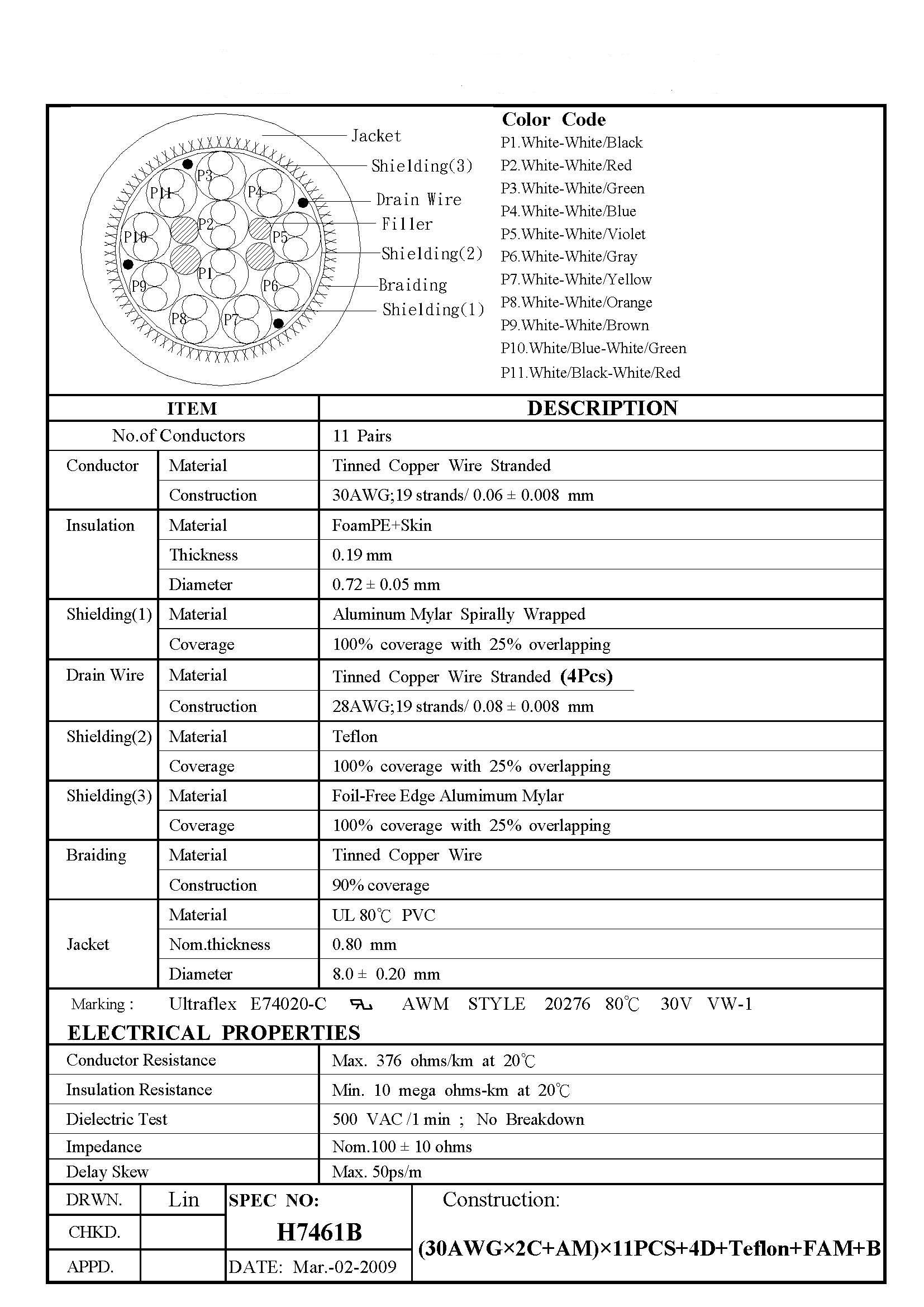

(30AWGx2C+AM)x11PCS+4D+Tefon+FAM+B OD8.0 High speed cable for small inner space applications.

(30AWGx2C+AM)x11PCS+4D+Tefon+FAM+B OD8.0


The Connector:

3M MDR, SDR, HDR Camera Link Connector, with screw lock or latching lock, Male and Female 26pin ,20pin, 36pin pole for options,backshell and molding type.

Camera Link MDR MaleCamera Link MDR FemaleCamera Link SDR/HDR MaleCamera Link SDR/HDR FemaleCamera Link 3M Latch Type Connector
MDR MaleMDR FemaleSDR/HDR MaleSDR/HDR Female3M Latch Type


The Camera Link connection orientation:

straight, right angle up,right angle down, 90 degree side angle,we have full set of angled molding for user's options to solve complex connections problem.

Camera Link R/A Exit UpCamera Link R/A Exit DownCamera Link R/A Exit RightCamera Link R/A Exit LeftCamera Link R/A Up 135° Exit LeftCamera Link R/A Down 135° Exit Left
R/A Exit UpR/A Exit DownR/A Exit LeftR/A Exit RightR/A Up 135° Exit LeftR/A Up 135° Exit Right


3M Compatiable part number:

14B26-SZLB-300-0KC

1SD26-3120-00C-200
1SD26-3120-00C-300
1SD26-3120-00C-500
1SD26-3120-00C-A00
1SF26-L120-00C-100
1SF26-L120-00C-200
1SF26-L120-00C-500
1SF26-L120-00C-A00
1SF26-L136-00C-100
1SF26-L136-00C-200
1SF26-L136-00C-500
1SF26-L136-00C-A00
1SF26-L137-00C-100
1SF26-L137-00C-200
1SF26-L137-00C-500
1SF26-L137-00C-A00
14136-SZ6B-030-0HC
14136-SZ6B-050-0HC
14B26-SZLB-030-0LC
14B26-SZLB-050-0LC
114520-EZAB-030-0EC
14520-EZAB-050-0EC


Others:

85MHZ high speed transmission:

cable length(M)<5.86.0~8.08.1~1010.1~1515.1~22
Frequency bandwidth(MHZ)8575664022


Other types camera link cables we provided:

bending camera link cable
power over camera link
mini camera link assembly
female MDR cable
female SDR cable
camera link extension cable
camera link long cable
camera link male to female
sdr male to female
mdr male to female
dual camera link cable
full camera link cable
UL camera link cable
high flex camera link cable
chainflex camera link cable
aoi camera link cable
latch lock camera link cable
right angle camera link cable
angled camera link cable
right angle sdr cable
left angle camera link cable
90 degree mini camera link cable
low noise camera link cable
custom camera link cable
90 degree mini camera link cable
